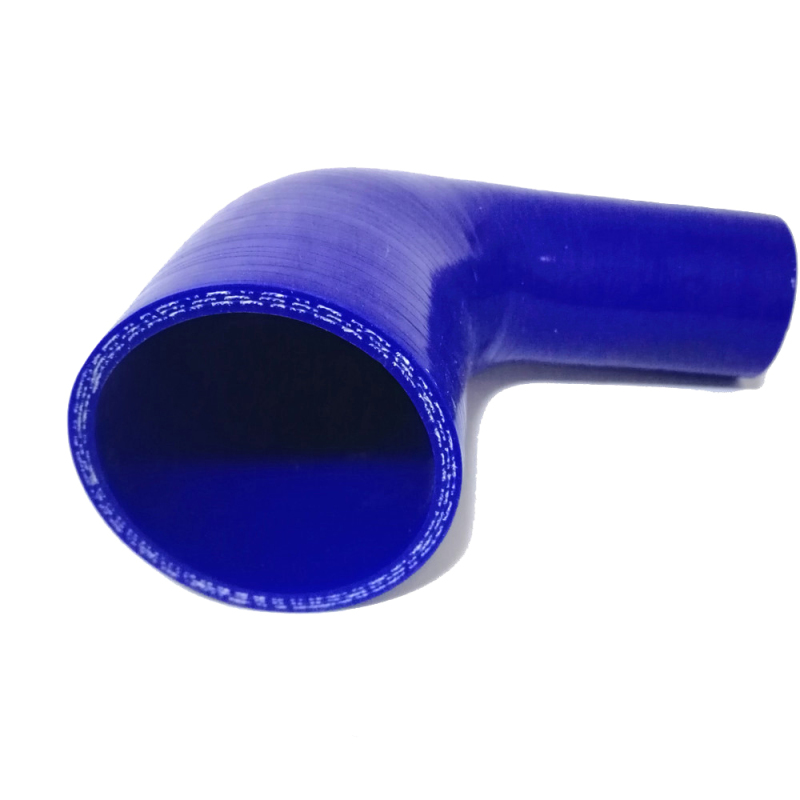

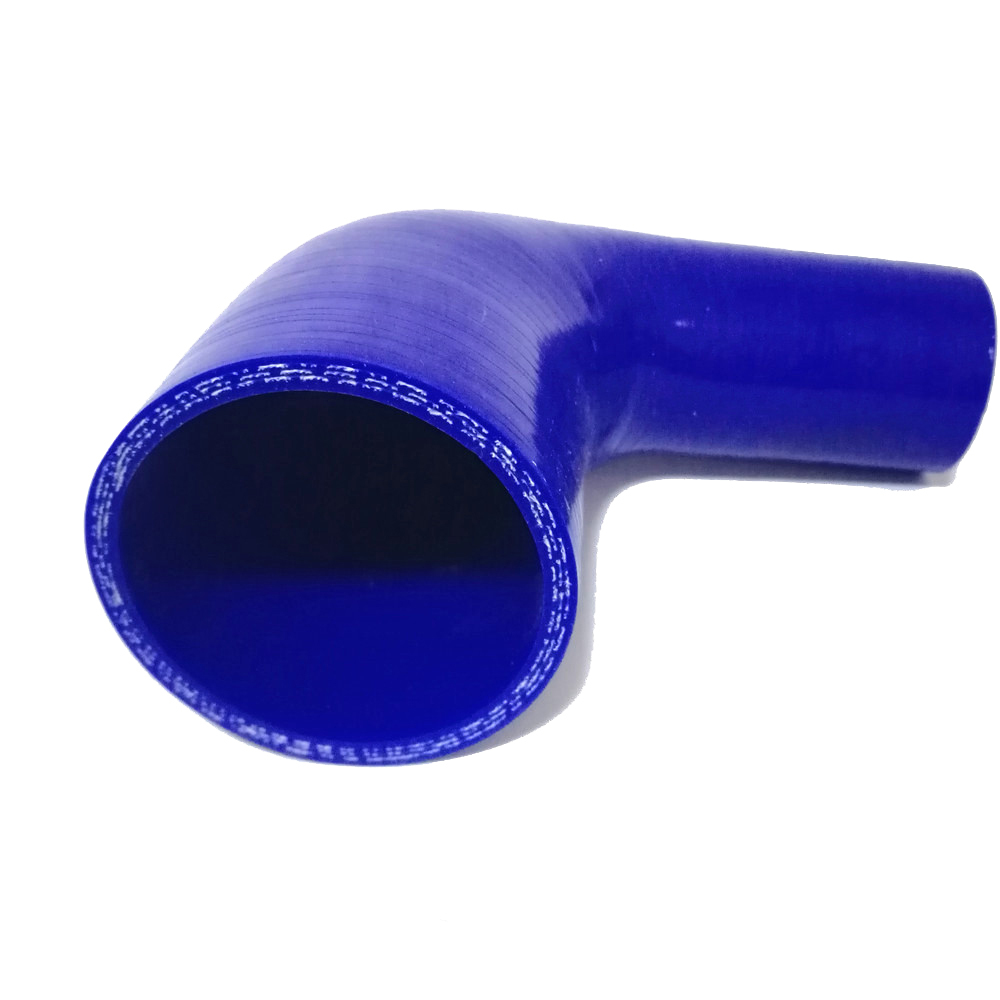

AotoKoop 90-Degree Blue Reducer Elbow A high-performance 4-ply silicone coupler engineered turbo intercooler intake Hose

Name: AotoKoop 90-Degree Blue Reducer Elbow A high-performance 4-ply silicone coupler engineered turbo intercooler intake Hose
Brand: AotoKoop Modified
SKU: AK20251127-90DER-blue
Price: 7.14 USD
Availability: OutOfStock

Engineered for demanding automotive applications, this precision 90-degree silicone reducer elbow is built to excel. It features a consistent inner diameter from 3.5 inch to 4 inch (89mm-102mm) with a remarkably tight size tolerance of +/- 0.5mm. The silicone reducer is constructed with rugged 4-Ply Nylon reinforcement and a substantial 0.2" (5mm) thickness, delivering exceptional durability with a robust working pressure of 85 PSI and an impressive burst pressure of 245 PSI.

This advanced high-temperature silicone hose performs flawlessly in extreme environments, offering superb resistance to UV, water, ozone, and oxygen. The silicone hose maintains perfect integrity across an extensive temperature resistance range from -60°C to 220°C (-76°F to 428°F). Complete with 2pc T-Bolt Clamps for absolute security, this silicone reducer establishes the ultimate connection for turbo, intercooler, and radiator intake systems, making it the ideal silicone coupler for high-performance automotive applications.

1/1

Description

Automotive Modification Part Center.

AotoKoop 4-Ply High Performance Silicone Hose

We have a universal automotive silicone hose manufacture factory, and have production experiences. we prove car modification replacement part for car modification fans.

Silicone hose include 3/4 layers car turbo engines silicone products, and customize universal automotive replacement parts. Our products include general car silicone tube, different types of radiator silicone tube, Coupler & Turbo intercooler pipe, etc.

Car modification replacement parts include: automotive engine replacement parts, engine room replacement parts (include air filter, sandwich adapter plate kit, etc.), wheel lug nuts, wheel spacers, car oil pipe adapter, cab replacement parts (Gear Shift Extender Kit etc.); and car decoration Accessories, etc.

All silicone coupler with T-Bolt Clamps 2pcs

except straight & straight reducer hose.

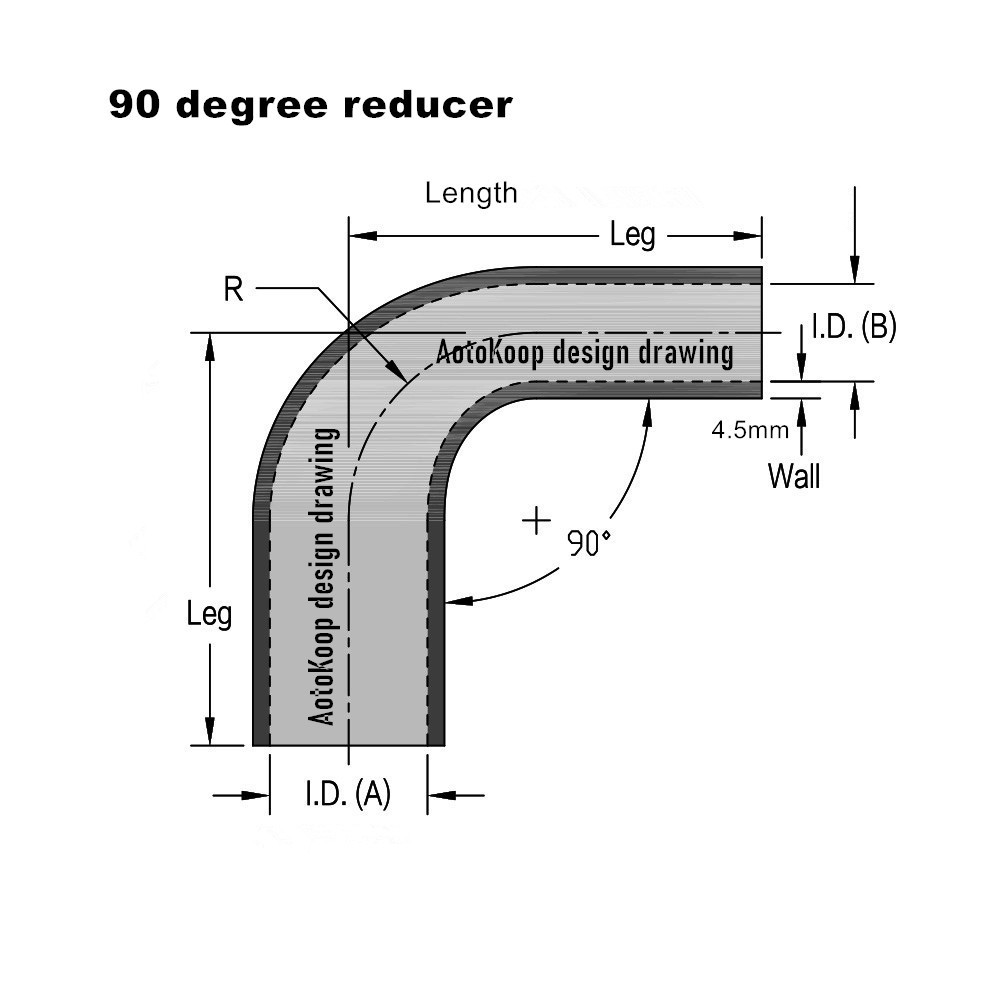

AotoKoop 4-Ply 90 degree silicone coupler

Include: 90 degree, 90 degree reducer; wall thickness: 4-Ply, 5mm
Leg length: ID 1.5"-3", length 4" (102mm); ID 3.5"-4.5", length 5" (125mm)
Package include:1 coupler + 2 stainless steel clamps
90 degree size include: ID 1.5" / ID 2" / ID 2.5" / ID 3" / ID 3.5" / ID 4" / 4.5"
90 degree reducer size include: ID 1.5" to 2" / ID 1.5" to 2.5" / ID 2" to 2.5" / ID 2" to 3" / ID 2.5" to 3" / ID 2.5" to 3.5" / ID 3" to 4"

AotoKoop 4-Ply 45 degree silicone coupler

Include: 45 degree, 45 degree reducer; Wall thickness: 4-Ply, 5mm
Leg length: ID 1.5"-3", length 4" (102mm); ID 3.5"-4.5", length 5" (125mm)
Package include:1 coupler + 2 stainless steel clamps
45 degree size include: ID 1.5" / ID 2" / ID 2.5" / ID 3" / ID 3.5" / ID 4" / 4.5"
45 degree reducer size include: ID 1.5" to 2" / ID 1.5" to 2.5" / ID 2" to 2.5" / ID 2" to 3" / ID 2.5" to 3" / ID 2.5" to 3.5" / ID 3" to 4"

AotoKoop straight silicone coupler hose

Three colors: blue, black, red
Package include:1 coupler
Wall thickness: 4-Ply, 5mm
Length: 3" (76mm)
Straight hose size include: ID 1.5" / ID 2" / ID 2.5" / ID 3" / ID 3.5" / ID 4" / 4.5"

AotoKoop straight reducer silicone coupler hose

Three colors: blue, black, red
Package include:1 coupler
Wall thickness: 4-Ply, 5mm
Length: 3" (76mm)
Straight reducer hose size include: ID 1.5" to 2" / ID 1.5" to 2.5" / ID 2" to 2.5" / ID 2" to 3" / ID 2.5" to 3" / ID 2.5" to 3.5" / ID 3" to 4"

90 degree silicone elbow

45 degree silicone elbow

Straight silicone hose

Straight reducer silicone hose

AotoKoop Products Advantage:

4-Ply Strong structure

Protect the hose from abrasion

100% High quality silicone tube & cover with 4-Ply polyester/aramid/glass fiber reinforcement High abrasion and temperature resistance.

High-temp

Mutipile types

Choose various sizes and colors

There are optional inner diameter, thickness, length & bending degree in terms of size.

You can also choose different colors to match your cars.

T silicone

Superior ability

Work well in cars systems

The hose has lasting physical laziness and good air permeability, which can ensure air transmission with high efficiency and long-term operation.

All silicone coupler product with T-Bolt Clamps 2pcs. (except straight & straight reducer hose)

High performance-A+

High performance for most car

AotoKoop silicone elbow hose is usually used for Heating and Cooling Systems, CAC Charge-Air-Cooler (Hot & Cold side) Turbo Charger Systems and Custom Compressor, Intercooler or Intake & Inlet Piping for turbo / Superchargers and so on.

Silicone hose feature:

AotoKoop silicone hoses are handcrafted engineering silicone with 4-ply reinforced polyester. It is far more superior than original (stock) rubber hoses in terms of reinforcement, temperature resistance, burst pressure tolerance, and material stability.

Reinforcement : 4-ply polyester mesh construction (5mm wall thickness); or for smaller diameter hoses is 3-ply polyester mesh construction (4mm wall thickness)

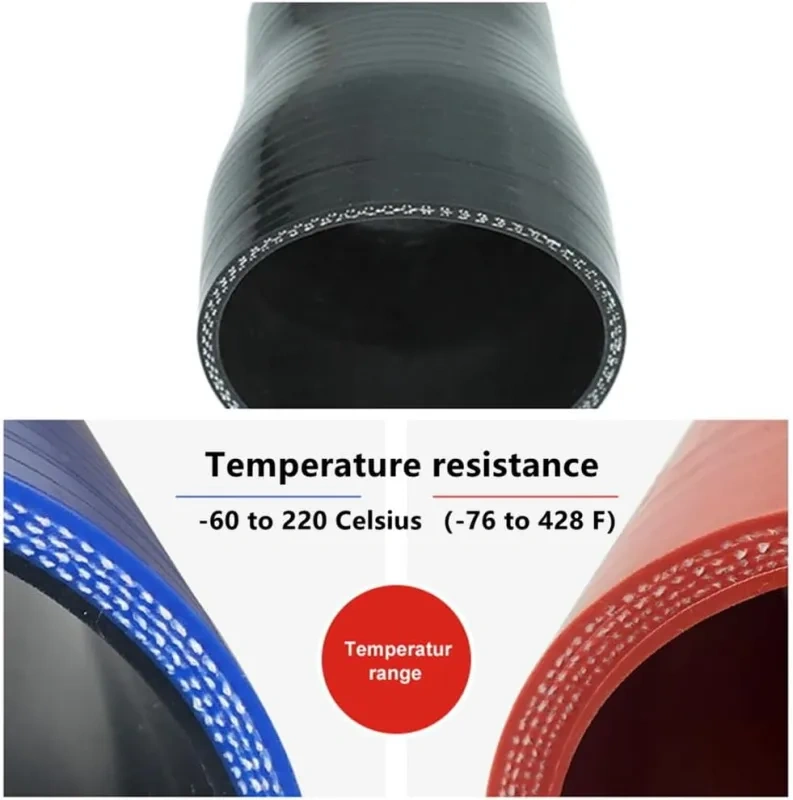

Temperature resistance : -60 to 220 Celsius ( -76 to 428 F)
Burst pressure tolerance : 6 Bar (88 psi)
Material stability : Superb resistant to UV, water, ozone and oxygen
AotoKoop Silicone Coupler length more longer than normal product, make the installation more steady and safely
